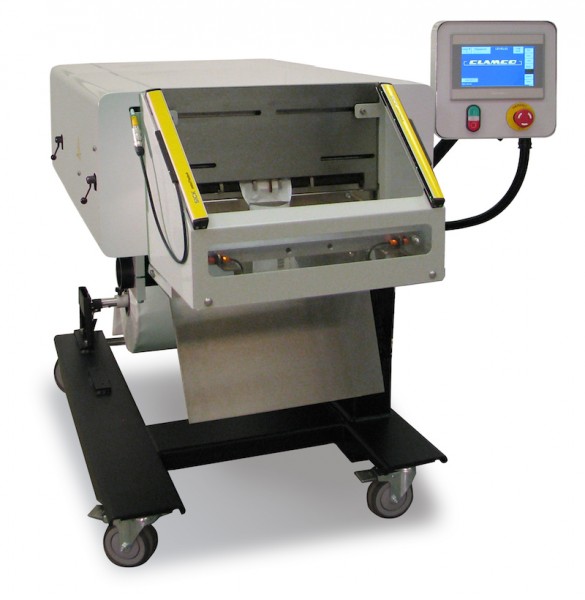

Clamco Magnum HS Medical Validatable Automatic Pouch Sealer

Automatic Pouching System

The Rollbag Magnum HS Med Automatic Bagger is a medical pouch sealing system for automatic packaging. This medical pouch sealer is capable of being independently validated and is designed for clean room use and can package products at speeds of up to 40 bags per minute using Tyvek® Poly or medical-grade paper rollstock (subject to material spec and bag size). Products packaged on the Rollbag Magnum HS Med Automatic Bagger are suitable for use with an autoclave or sterilizer.

Printing Options

  • 2D UDI barcode printer to print text, graphics, and barcodes directly on tubing or bag
  • Thermal transfer printer for text, graphics, and barcodes

Product Loading Options

  • Bag open sensor
  • Standard, adjustable, accumulating or guaranteed open funnels for increasing packaging rates and automation
  • Increase the Seal Bar Pass-Through to 6.25” for bulky products
  • Add on an Articulating Load Shelf for superior seal quality with heavy products

Sealing Options

  • 1/4? Wide Seal for increased seal integrity

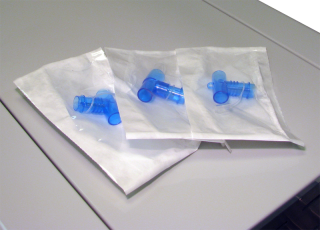

  • 3/8” Chevron Seal Bar for easy open pouches
  • Seal Flattening system for a superior seal

Safety Options

  • When the PLC detects an error an Audible Warning System alarm sounds and the machine stops
  • Dual Palm Buttons must be pressed simultaneously in order for the machine to cycle
  • A Light Curtain prevents the operation of the bagger when the optical detection field is obstructed

Other Options

  • An Adjustable Hole Punch puts a small hole in the bag, allowing excess air to escape
  • End of Roll Detector to monitor bag position
  • Film Low Sensor detects a bag in position and open
  • Air Expeller to compress bag and expel air before sealing
  • 230V 50/60 Hz operation
  • Design for meeting ISO 6 standards for cleanroom environments
  • Separate Air Entry for a separate air supply to blow open the bag
  • In-feed conveyors to help with kit packaging and/or product counting operations
  • Custom options for special packaging applications
  • Spare parts kits


Validation Benefits

  • Fully validatable automatic bagging system for packaging medical devices in Tyvek® pouches
  • Controls and ports provide validation and calibrations of key sealing parameters
  • Pressure and temperature sensors trigger alarm and stop operation when out of preset band
  • Production data logs to document sealing parameters

Operating Benefits

  • Uses tubing in a simple to operate, low maintenance design that provides lower material costs by forming pouches inline as they are filled and sealed
  • Constant heat 1/8? wide straight seal bars or an option for a 3/8? wide chevron and straight seal bar
  • Variable bag length enables machine to package products of practically any length
  • Built-in interface port integrates counters, scales, and robotics for fully automatic packaging
  • Wide color touchscreen is operator friendly and has clear readable prompts and alarms
  • Adjustable loading position from vertical to slanted meets various packaging requirements
  • 1-micron filter protects pouch interior and contents from airborne particulate matter
  • Onboard memory stores multiple job data to recall at a later date

Maintenance Benefits

  • Self-diagnostics ensure quick problem-solving
  • Designed to minimize preventative maintenance costs

Safety Benefits

  • Low-pressure closing with obstruction detection system for improved operator safety
  • Designed to meet CE requirements
