TB-2 Top Belt & Bottom Belt Case Taper

TB-2 Top Belt & Bottom Belt Case Taper

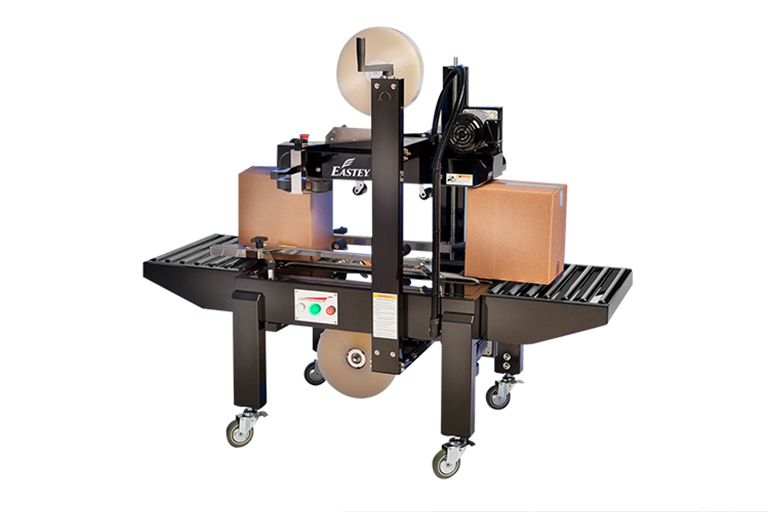

The operator friendly TB-2 top and bottom belt case taper is designed for large run case sealing. The top and bottom drives are ideal for tall and narrow uniform cases and heavier cases up to 85 lbs. No air is required to run the TB-2 case taping system so it can be placed anywhere in the plant.

Four drive belts work in unison to move your cases consistently through for a strong and consistent seal. TB-2 utilizes a dual mast with twin lead screws for greater tape head stability and adjustable side guides to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled cases. The system is designed to keep maintenance to a minimum and provide a fast and efficient alternative to hand taping.

TB-2 offers fast and easy case changes and flexibility for boxes 5” in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. TB-2 utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 6.0” wide and as low as 4.5” tall.

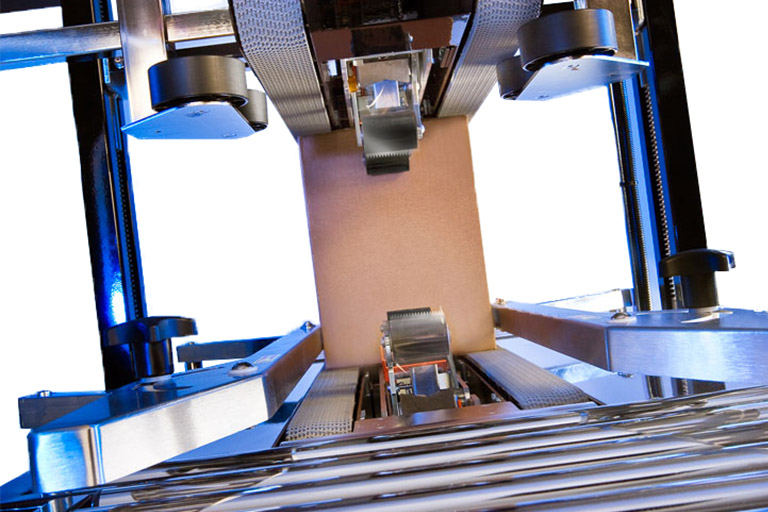

Top and bottom drive for unstable or heavy cases.

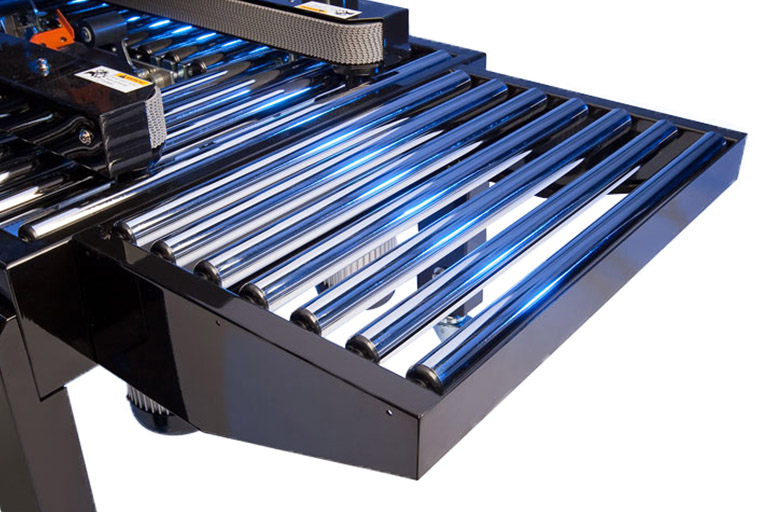

Industrial strength pack table to allow for case movement.

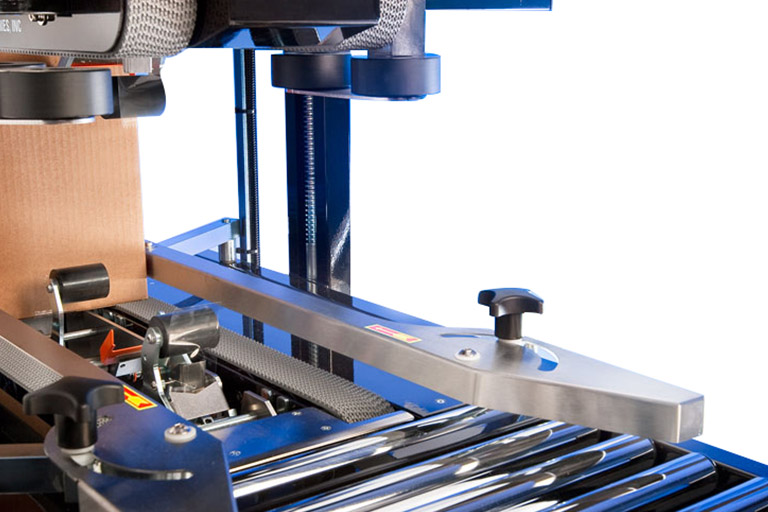

Adjustable side rails and tape head offer fast and easy case changes.

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.

Minimum Box Size – 5? (Length) 6? (Width) 4.5? (Depth)

Maximum Box Size – infinite (Length) 19.5? (Width) 19.5? (Depth)


Utilizes Eastey’s Easy-Taper tapehead

Dual mast for tape head stability

Top compression rollers

Front and rear roller pack tables

Plug-in and go operation

Powder coated 12 gauge steel

Adjustable side guides

Industrial strength top and bottom belts

Adjustable leg extensions

Fast and easy box size changes

Low maintenance

Casters for transportation within plant


Sealer Type – Uniform top and bottom belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability

Belt Speed – 75 feet/per minute

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 24.3” to 32.3” conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Air Requirements – None

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification


3” Tape Head – Accepts 3” wide tape rolls
