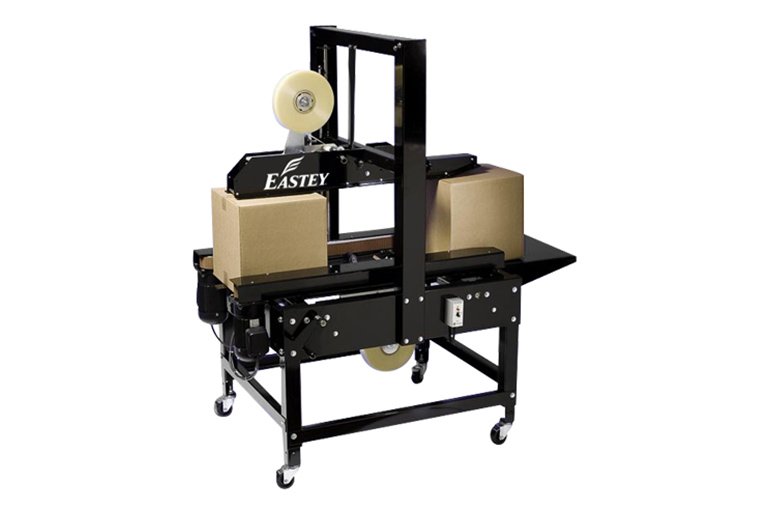

SB-2HD Side Belt Case Taper

SB-2HD Side Belt Case Taper

The SB-2HD offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

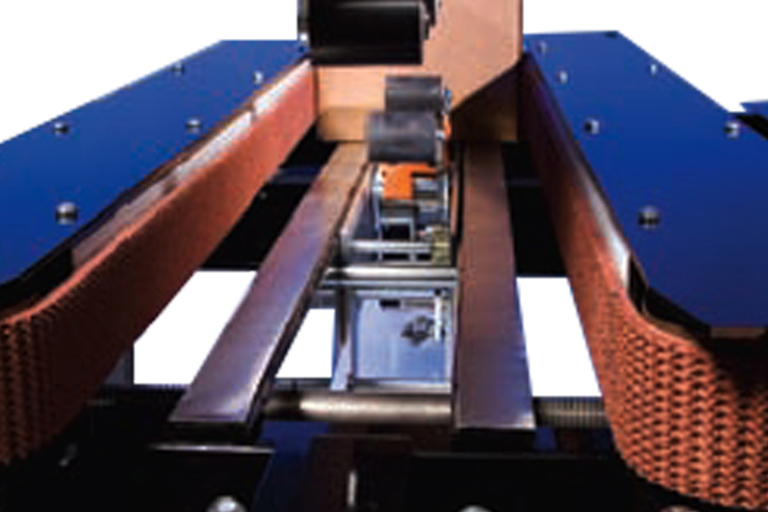

The SB-2HD’s side belts are great for light or heavyweight, narrow or small boxes. The system is ideal for void fill cases where the packaged product does not support the box. SB-2HD is designed to handle boxes that most other case tapers can’t.

SB-2HD offers fast and easy case changes with adjustable side rails and flexibility for boxes 4.5” long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB-2HD utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4” wide and as low as 2” tall, where most standard case tapers are only able to tape at a depth of 3” or greater. The SB 2HD can be supplied to operate from left to right at no additional cost, and does not require air to run.

.



Minimum Box Size – 4.5? (Length) 4? (Width) 2? (Depth)

Maximum Box Size – infinite (Length) 20? (Width) 25? (Depth)

  • Plug-in and go operation
  • Powder coated 12 gauge steel
  • Interchangeable top and bottom tape cartridges
  • Industrial strength side belts
  • Adjustable leg extensions
  • Fast and easy box size changes
  • No air required
  • Low maintenance
  • Accommodates wide box size change


Sealer Type

 – Side belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

 Height Adjustment – Standard adjustable legs for 22.5” to 30.5” conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Air Requirements – None

Electrical Requirements – 110 VAC, 60Hz, 5.0A
