APM VCBS-1/4 + 1/4-6 x 8

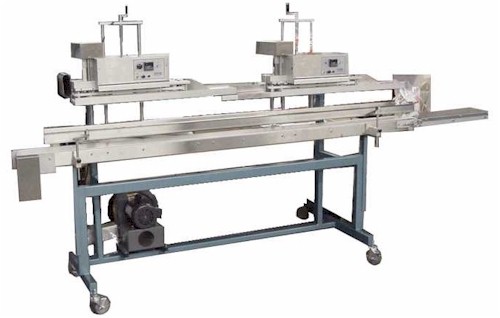

USDA approved Dual Head Vertical Rotary Band Sealing System with Bag Top Trimmer and Lower Carry Synchronized Conveyor.

 Features:

  • System is designed for light to heavy-duty Dual Seal applications. Recommended for the packaging of warehouse type large bags requiring a Seal and Trim above, and a Seal below a handle.
  • Supplied with Lower Carry Belts and interfaced Variable Speed Conveyor, 6” wide x 8’ long with fully adjustable stainless steel Guide Rails. Adjustable height Sealing Assembly Floor Stand with crank handle and Vacuum System for trim scrap removal is standard.
  • This continuous band sealer will seal and trim Tyvek®, Foil, Polyethylene, Polypropylene, Nylon, Coextrusion, Polylaminates and poly-coated paper materials.
  • Variable speeds up to 540 inches per minute (45 fpm) with ultra-quiet DC gear motor.
  • Quality seals of 1/8”, 1/4” or 3/8” wide are achieved through the use of special heavy duty wear-resistant laminated Teflon bands.
  • Each head is designed with 5” long heating zone and 5” long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 500 degrees Fahrenheit.
  • Hard Chrome plated sealing bars followed by Nickel plated cooling bars allow for maximum wear resistance.
  • Digital Temperature Control with PID Auto tune maintains consistent heat and assures quality hermetic seals.
  • Optional Infeed Conveyor (shown) supports heavy or bulky packages for final seal and trim.
  • Optional one or two line Embossing Coder for product marking is available upon request.
  • Electrical 110 VAC 10 amps/ 60 Cycle. No compressed air required.
  • Optional one or two line Embossing Coder for product marking is available upon request.
  • Custom configurations are available, inquire with our Sales Department with your application.
