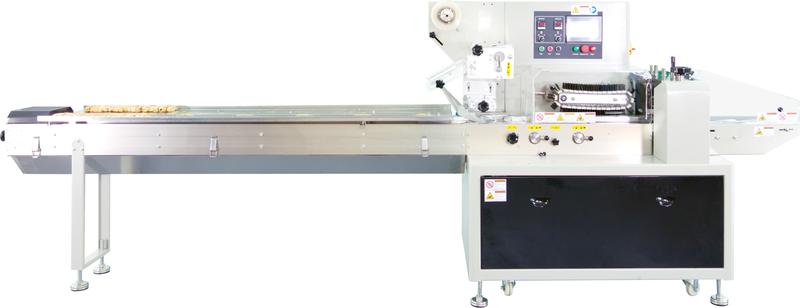

PM-C350 Series Horizontal Flow Wrapper
The Model C350 is a flow wrapper for candy, biscuits, bread, hardware, and other solid products in small packaging. It can make a bag up to W160 x L190mm.
The loading table allows the operators to place products on the in-feed chain. The attached pushers on the chain will move the product along the horizontal track and push the product into the wrapping tube, the tube is then seal and cut by the transverse seal system which contains a knife with anvil on the crimp jaws.
• 5.7" color touch-screen HMI
• Machine functions controlled by "Panasonic" PLC
• Auto diagnosis with on-screen error display for easy troubleshooting
• Auto synchronizing the wrapping material and transverse cut
• Air expelling device
• Bag length controlled by encoder or photoelectric sensor
• Constant heat sealing system
• Film advancing rollers inverter driven
• Film reel clamping for fixation
• Film reel holder self-centering by hand-wheel
• Film reel power unwind mechanism
• Forming inlet adjustable for various width
• P.I.D. digital temperature controller, heats up to 150°C in less than 10 minutes
• Photoelectric sensor by "Omron"
• Rotary crimp double jaws transverse seal system
• Rotary crimp double jaws inverter driven
Specifications
Bag origin: Film reel
Bag width: 50 -160 mm | 2 - 6¼ inch
Bag length: 65 - 190mm | 2½ - 7¼ inch
Bag height: <40 mm | <1½ inch
Reel width: 130 - 350mm | 5 - 13¾ inch
Cutting style: Serrated
Machine speed: 40 - 230 bpm
Machine weight (kg): 600
Machine dimensions: L4020 x W770 x H1450 mm
Power (kW): 2.8
Voltage: 220VAC, 50Hz, 1-Phase
