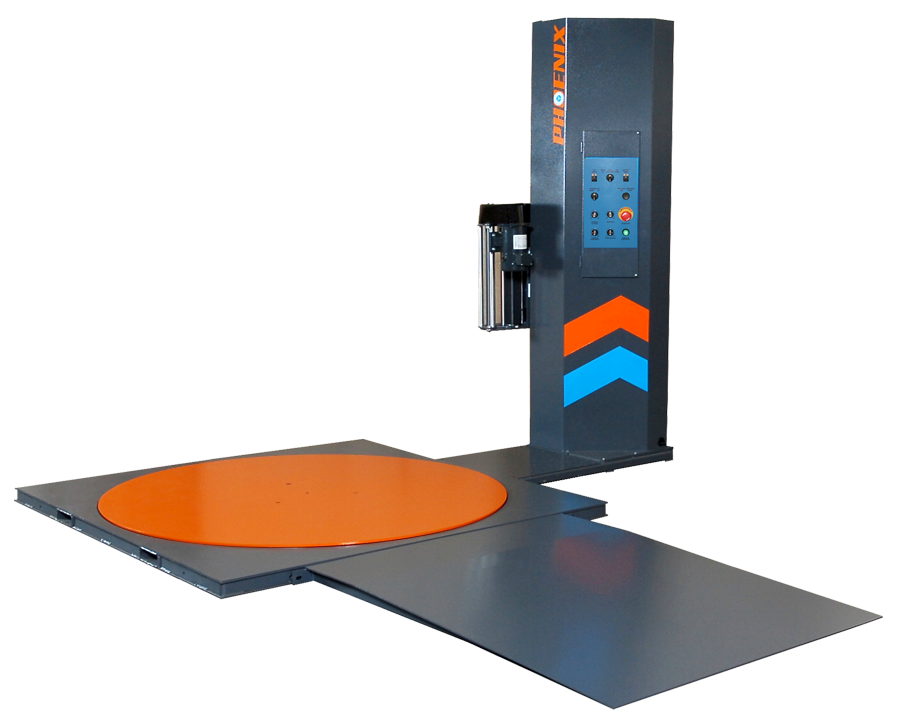

Phoenix PLP 2300
The PLP-2300 is our extreme duty stretch wrapper that is over-designed for the most demanding of applications.
Having the features of the more standard machines, the PLP-2300 is upgraded in all aspects of the construction to handle abusive environments. It provides consistent, repeatable stretch wrapping performance. Extremely operator friendly, the one touch operator start and simple film roll changing makes this easy to use for all employees. stretch wrapper wraps even the toughest loads with very little stretch film. Fast, reliable and built like a tank the PLP-2300 is safe to use and is covered by a full 5 year full coverage warranty.
- 61 x 61 MAX Pallet Size (80" Load Diagonal) Largest Pallet Wrapper Turntable Capacity in its Class.
- 16 RPM Stretch Wrapping Speed. Fastest in its Class.
- Best in Class Wrapping Flexibility c/w Allen Bradley PLC and Switch Control, provides all features as standard…. Including those not available (or an upcharge) on competitive models.
Complete Wrapping Flexibility Including:
- 3 Wrapping Cycles: Wrap up, Wrap up/down, Top Cover Pause.
- Reinforce Wrap and Cycle pause capability.
- Keypad controls of all parameters.
Learn more about the Features of our Pushbutton Control Panel
Stretch Film Saving features such as:
- Separate 1-9 top and bottom wrap count provides up to 15% Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top & bottom regardless of need.
- Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10% Savings).
Learn more about the Stretch Film Saving Features
Why would you pay extra money with competitive models if you can have these feature
already included in the price at no extra cost?
Standard Superior Features
- 5,500 lbs. weight capacity turntable c/w 28 Heavy Duty Casters on Welded Supports.
- Variable Speed Drives control all motors for maximum flexibility.
- Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
- Forklift portable from Front of machine.
- Heavy-Duty structural steel tubing and frame.
- Steel cross member reinforcement in tower and turntable.
- 2-7/8" Turntable Elevation – Competitive models are typically 12" to 13".
- Controls enclosed in tower.
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
- Guaranteed For Life Prestretch rollers with 245% prestretch ratio as standard.
- 5 Year Warranty.
“Best in Class” Safety features:
- Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
- Easy Film Loading carriage with double lock door control for guaranteed locking.
- Mushroom Twist & Pull E-Stop Button.
Stretch Wrapping Options:
- Split Base.
- 30" Prestretch film carriage for wider stretch film.
- Scale Packages.
- Extended Wrap Height Capacity up to 116".
- Extended load diagonal for larger pallet sizes.
- Many other options are available...
Production Capacity:45 loads per hourMaximum load weight:5500 lbsMaximum load size:61×61Frame Type:Low ProfileWarranty:5 Year Warranty
