Shanklin S 24B Hot Wire Like New

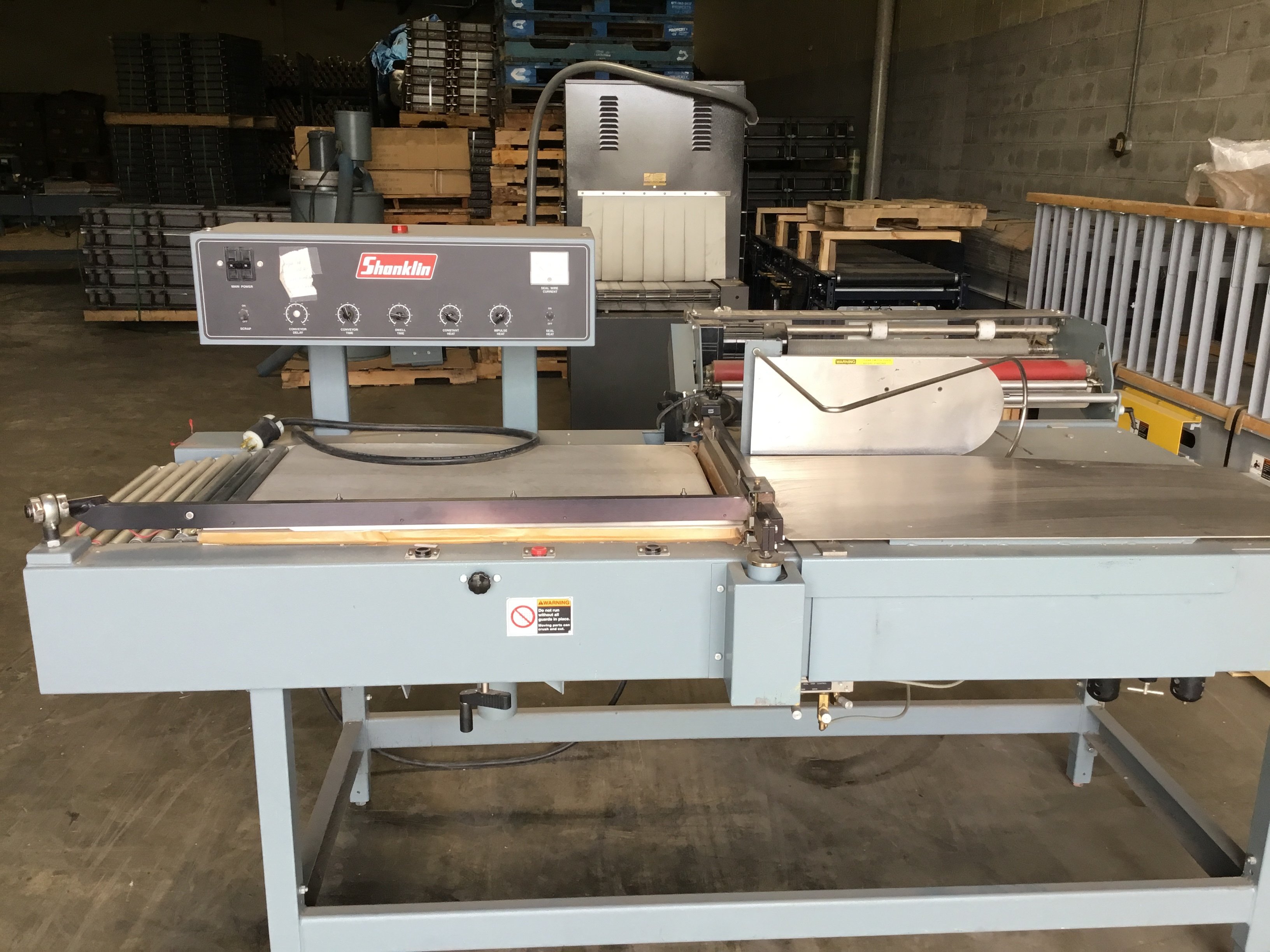

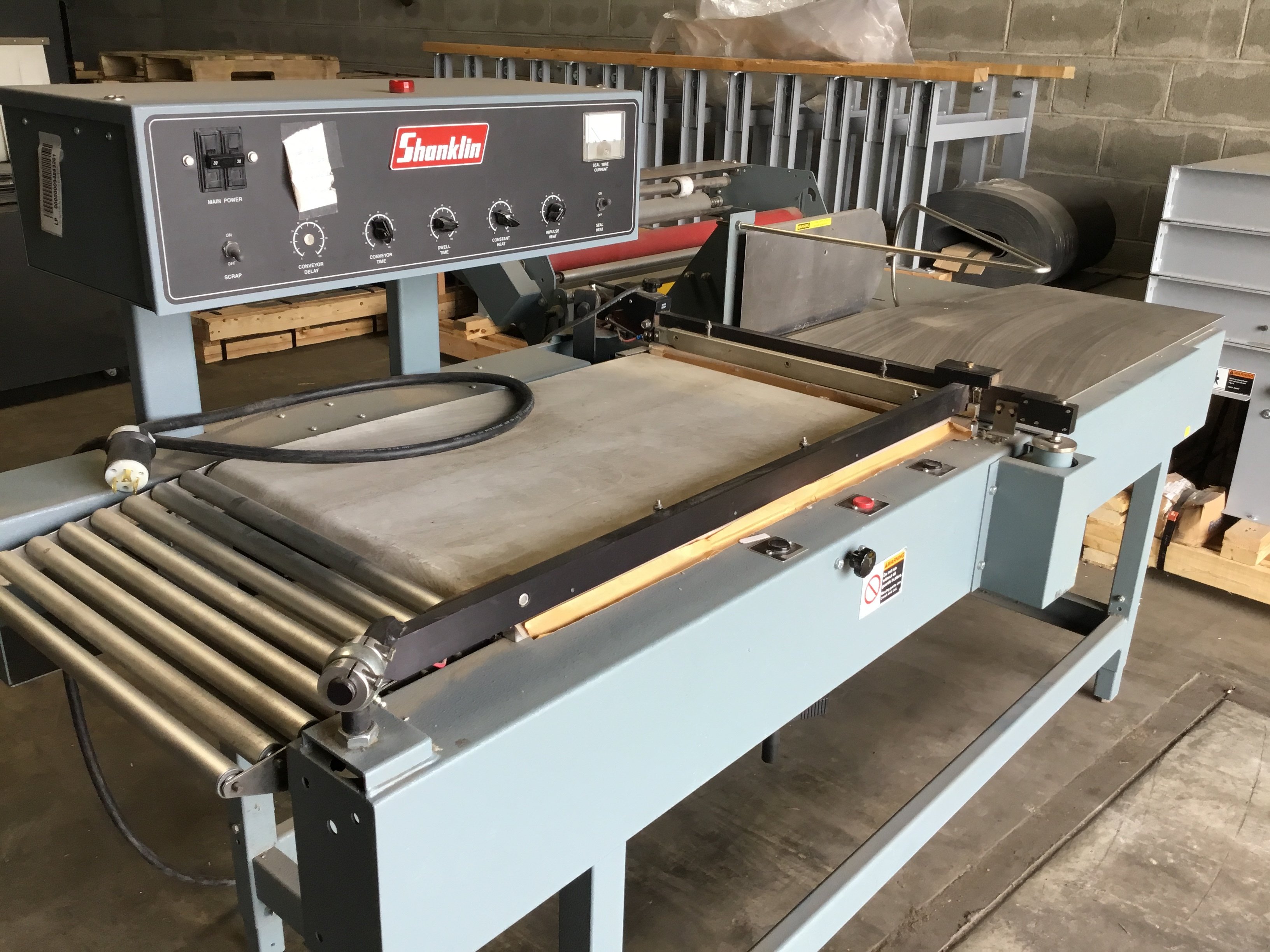

The Shanklin Model S24B/S24BL L-Frame Sealer is high production semi-automatic wrapping machine. Features of the machine include a 3-point sealing arm suspension with air-magnetic latching, fool-proof arm safety, a precisely controlled heat sealing cycle and a timer-controlled discharge conveyor. Electrical relays are mounted on a U.L. listed panel located behind the easy-to-reach control panel which provides accurate heat for consistent seal. For operator convenience, the unit is equipped with telescoping legs.

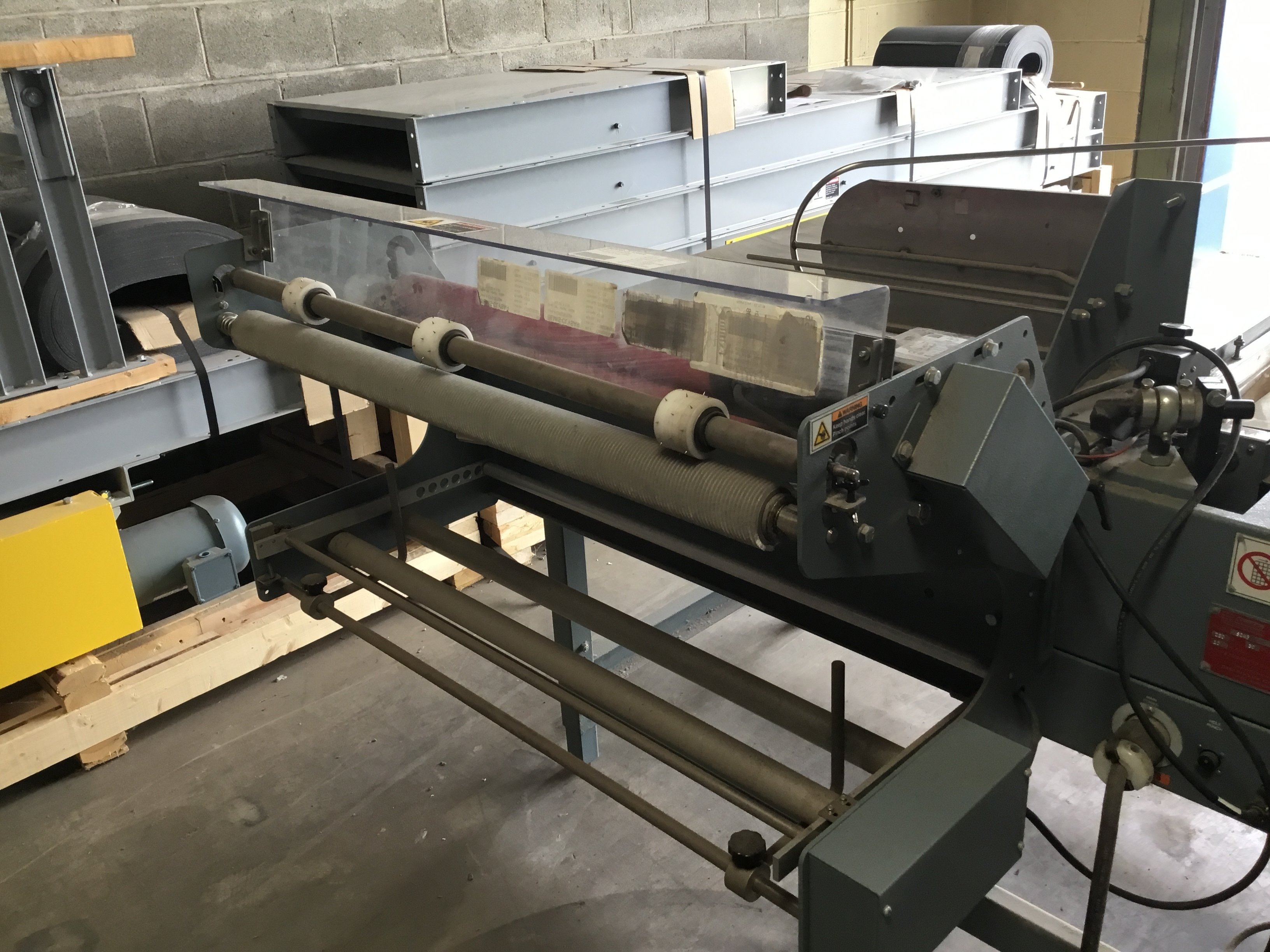

Higher production speeds are achieved with the Model S24B/S24BL because it includes several unique features normally found only on our fully automatic L-Sealers; namely, the power film unwind and the film inverting head. The power film unwind permits a free feeding of the film, thus increasing operator efficiency. In addition, better seals (fewer rewraps) are obtained because the film in the seal area is always loose.

Shanklin Model S24B/S24BL Specifications Model S24B/S24BL

Special Features

• Power Film Unwind

• Film Inverting Head

• Brush Backed Pin Perforator

• One Piece Hot Knife

Sealer Size 15" Wide x 33" Long (20" Wide and 40" Long Available)

Machine Height Adjustable from 31" to 43"

Floor Space 4 1/2" X 7"

Package Speeds 20 to 30 Packages/Min.

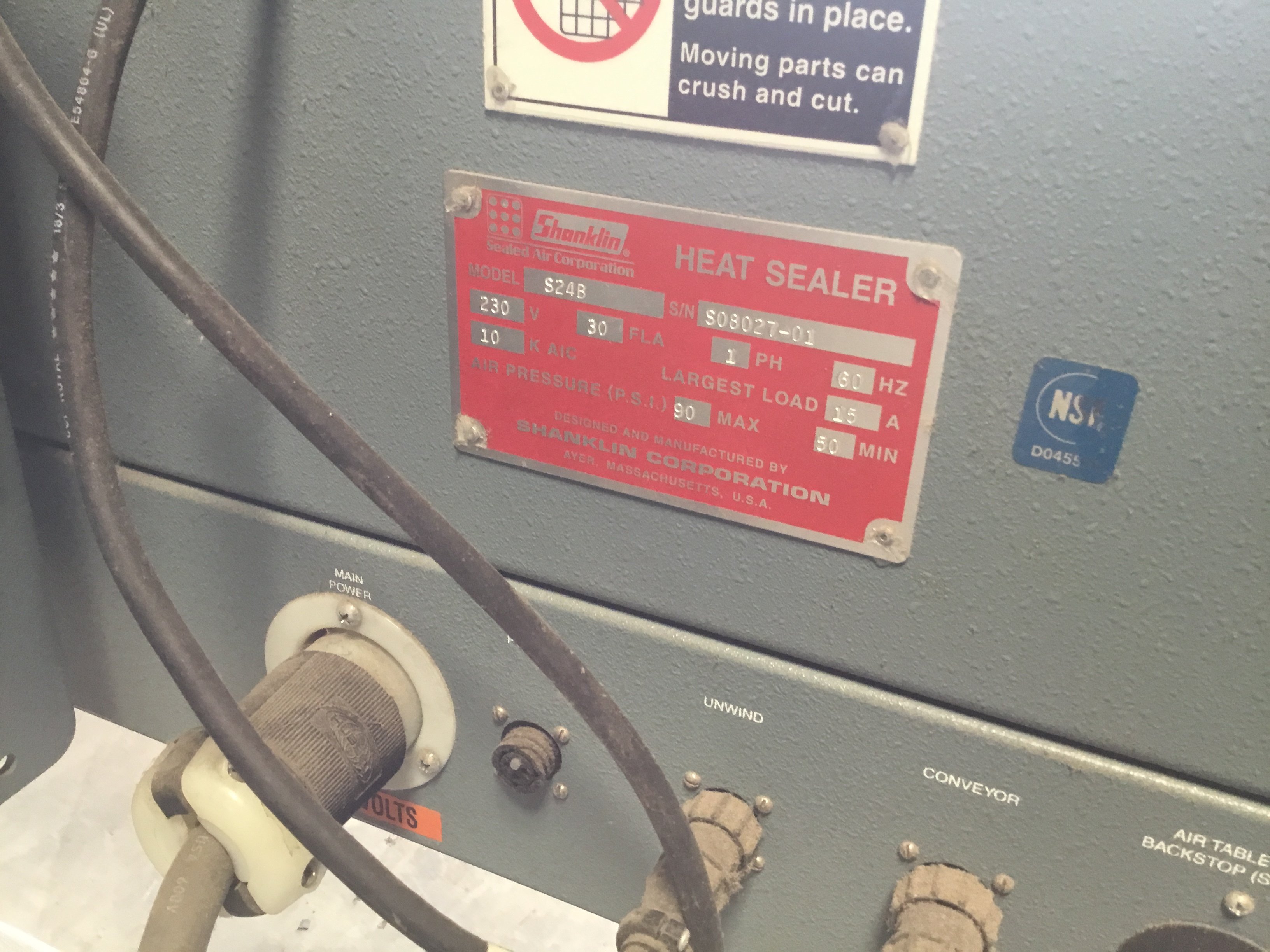

Power 220V, 20 Amps, 1 Phase (U.L. Listed Control Panel)

Compressed Air 0.5 C.F.M. at 50 P.S.I

Mechanical Adjustments

• Discharge Conveyor Height

• Packing Table and Inverting Head Depth

• Package Guide Position

• Film Roll Guides

• Machine Height

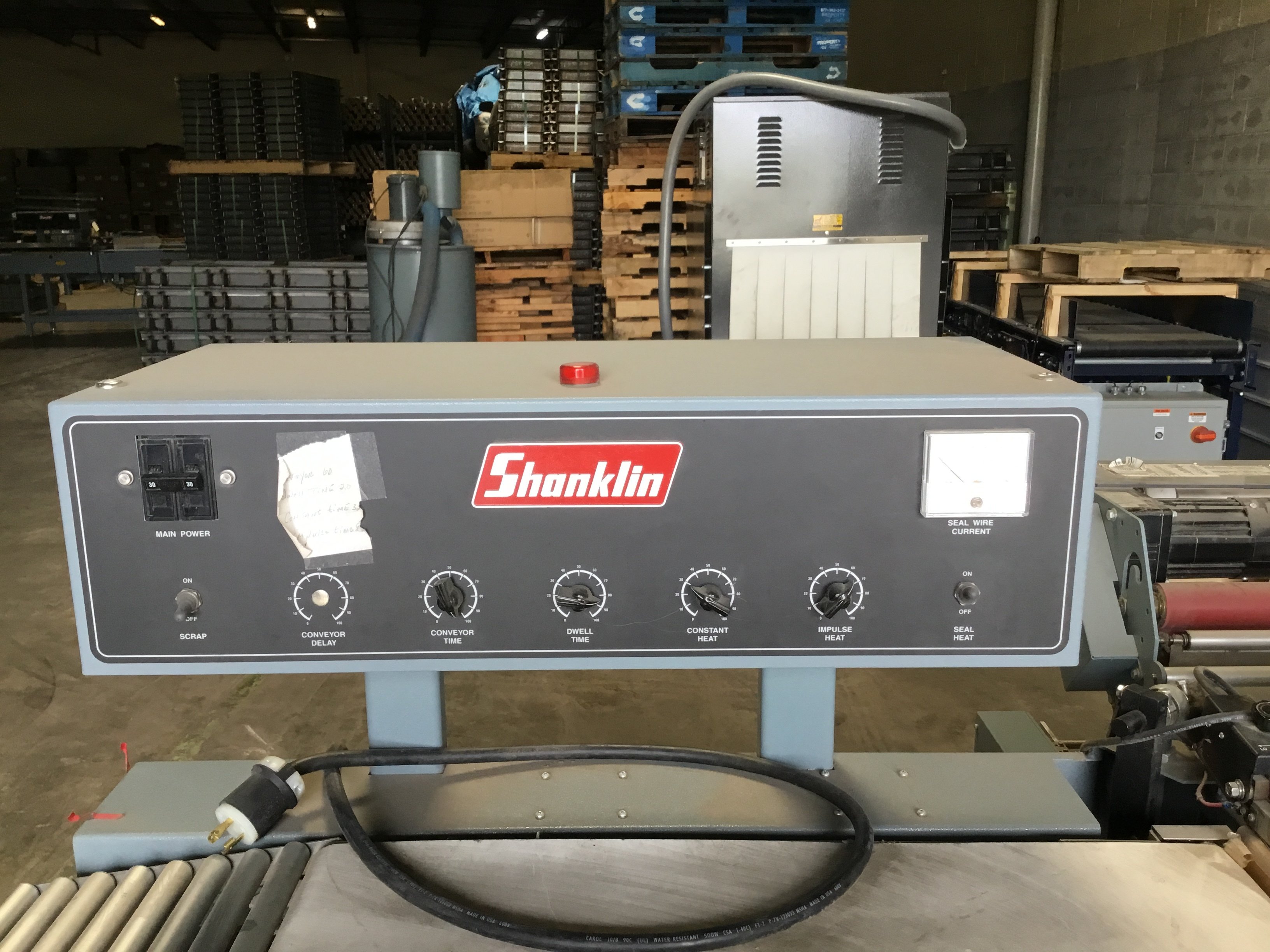

Electrical Controls

• “Seal” and “Open” Switches

• Dwell Timer

• Conveyor Timer

• Power Unwind Reversing Switch

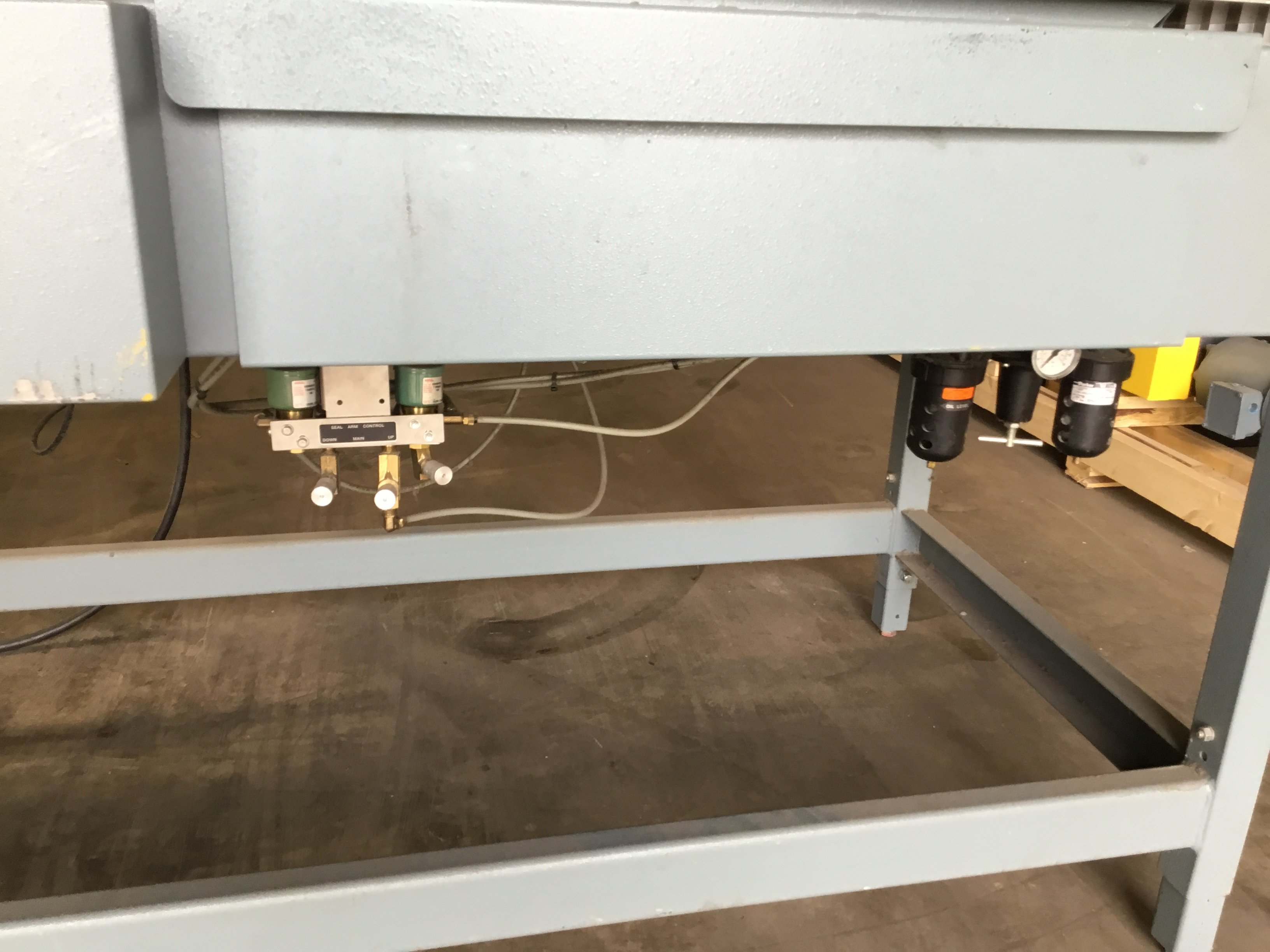

Pneumatic Controls

• Flow Control Valves on Sealing Arm

• Air Filter

• Regulator

• Lubricator

• Gauge

Safety Features

• Automatic Force Sensor and switches on Seal Jaw provide redundant safety benefits in the event resistance were encountered during closing and prior to locking

Accessories

• Adjustable Depth Inverting Head

• Adjustable Height Inverting Head

• Teflon Coated Inverting Head

• Special Parts for 18" or 20" Width Capability Available

• Scrap Removal System (Vacuum or Winder)

• Static Eliminator

• Film Centerfolder

• Casters
