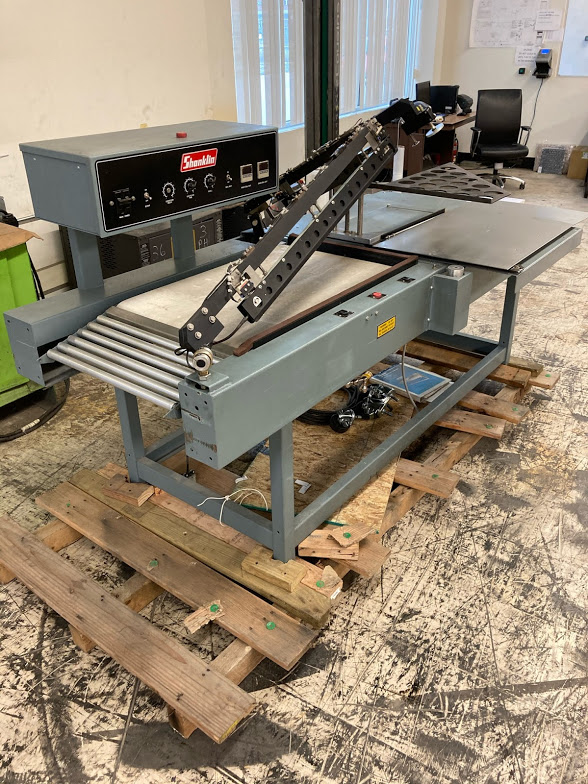

Shanklin S24B SN#S89133 Hot Knife & Adjustable Inverting Head
Shanklin S-24B

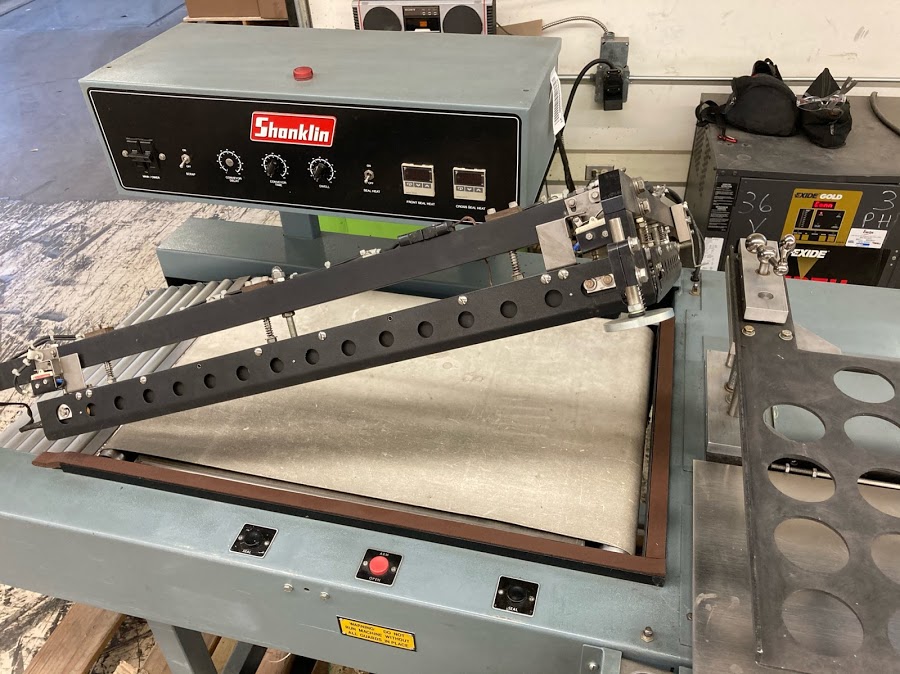

The Shanklin® Semi-Automatic L-Sealers are built for applications that require packaging line speeds approaching those of fully automatic sealers, but where equipment cost is a factor or where the product does not lend itself to automatic handling. All models feature automatic sealing cycle, automatic package discharge, Hot Knife Sealing jaws and adjustable inverting head option

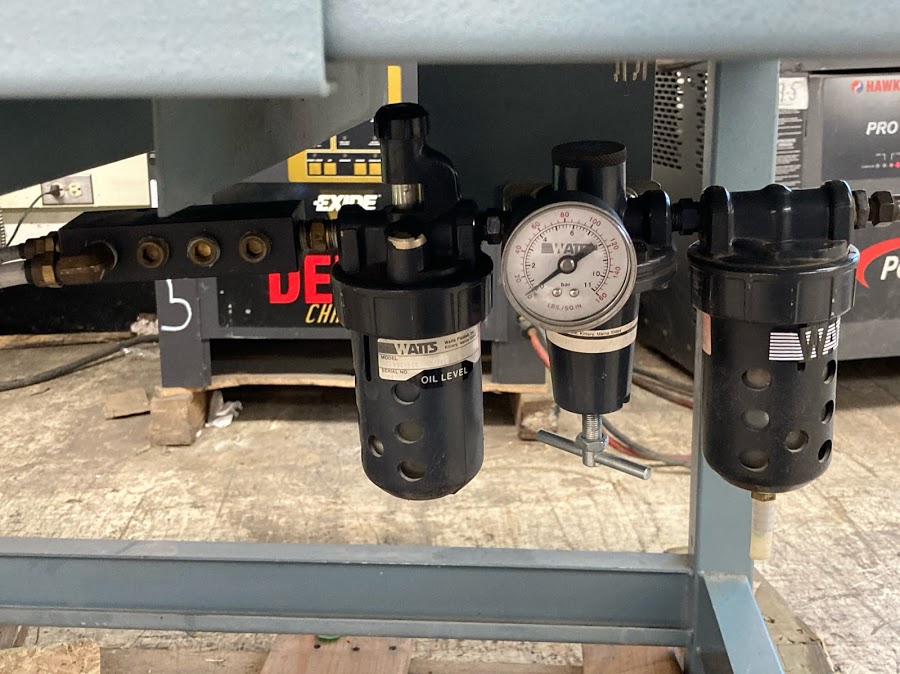

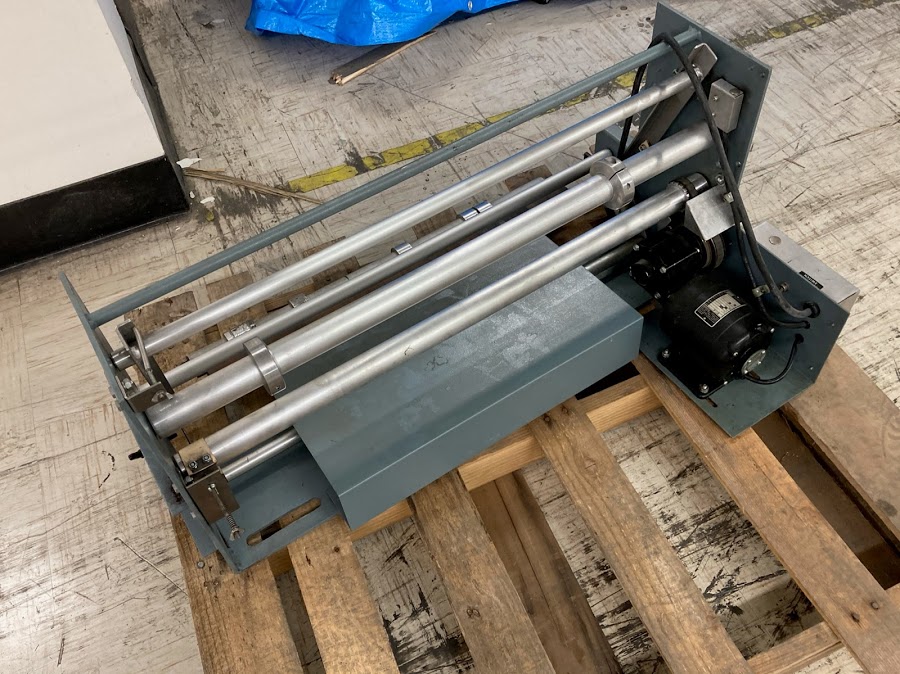

Shanklin Model S24B/S24BL Specifications Model S24B/S24BL Special Features • Power Film Unwind • Film Inverting Head • Brush Backed Pin Perforator • One Piece Hot Knife Sealer Size 15" Wide x 33" Long Machine Height Adjustable from 31" to 43" Floor Space 4 1/2’ X 7’ Package Speeds 20 to 30 Packages/Min. Power 220V, 20 Amps, 1 Phase (U.L. Listed Control Panel) Compressed Air 0.5 C.F.M. at 50 P.S.I Mechanical • Discharge Conveyor Height Adjustments • Packing Table and Inverting Head Depth • Package Guide Position • Film Roll Guides • Machine Height Electrical Controls • “Seal” and “Open” Switches • Dwell Timer • Conveyor Timer • Power Unwind Reversing Switch Pneumatic • Flow Control Valves on Sealing Arm Controls • Air Filter • Regulator • Lubricator • Gauge Safety Features • Automatic Force Sensor and switches on Seal Jaw provide redundant safety benefits in the event resistance were encountered during closing and prior to locking Accessories • Adjustable Depth Inverting Head • Adjustable Height Inverting Head • Teflon Coated Inverting Head • Special Parts for 18" or 20" Width Capability Available • Scrap Removal System (Vacuum or Winder) • Static Eliminator • Film Centerfolder • Casters
